Size : 1/2" - 16"
Rating : 150# - 2500#
Temp. : -196°C to 1000°C
Kv : 0.1-2800
Action : Rotary
End connection : Tri clamp, SMS Coupling, SW, BW, NPT, BSP, Flanged
Actuator : Pneumatic Diaphragm, Single & Double acting, Motorised
Accessories : AFR,SOV,Positioner(Electro pneumatic,pneuamtic ),LS, Booster, QEV
Handwheel : Side mount
Application : Pulp and various
Characteristics : Linear, EQ%, Modified EQ%, Quick opening
Body MOC : CS, SS

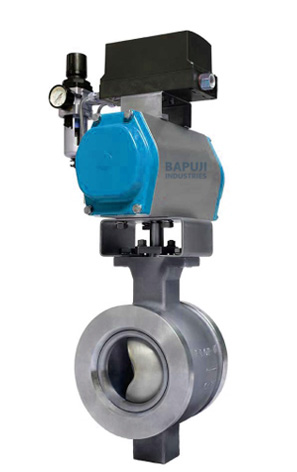

Bapuji Industries V-notch ball valve provides a flow range ability of 100:1 and carries the effect in controlling cavitation, flashing and the choking concept of the media. With its level of control the affect of start up conditions of the plant where shearing off the internal closing member in form of plug and seat of the trim section take place, Bapuji Industries own high density flow control plug which carries the special design to take care of all such critical start up and cavitation effect of the media help you solve a major cost effectiveness and reduce your major man hour usage and maintenance cost of the plan.
Valve body made of :
Cast steel
Cast stainless steel
Segmented / (V-Notch) ball valve :
Soft seal
Metal seal
